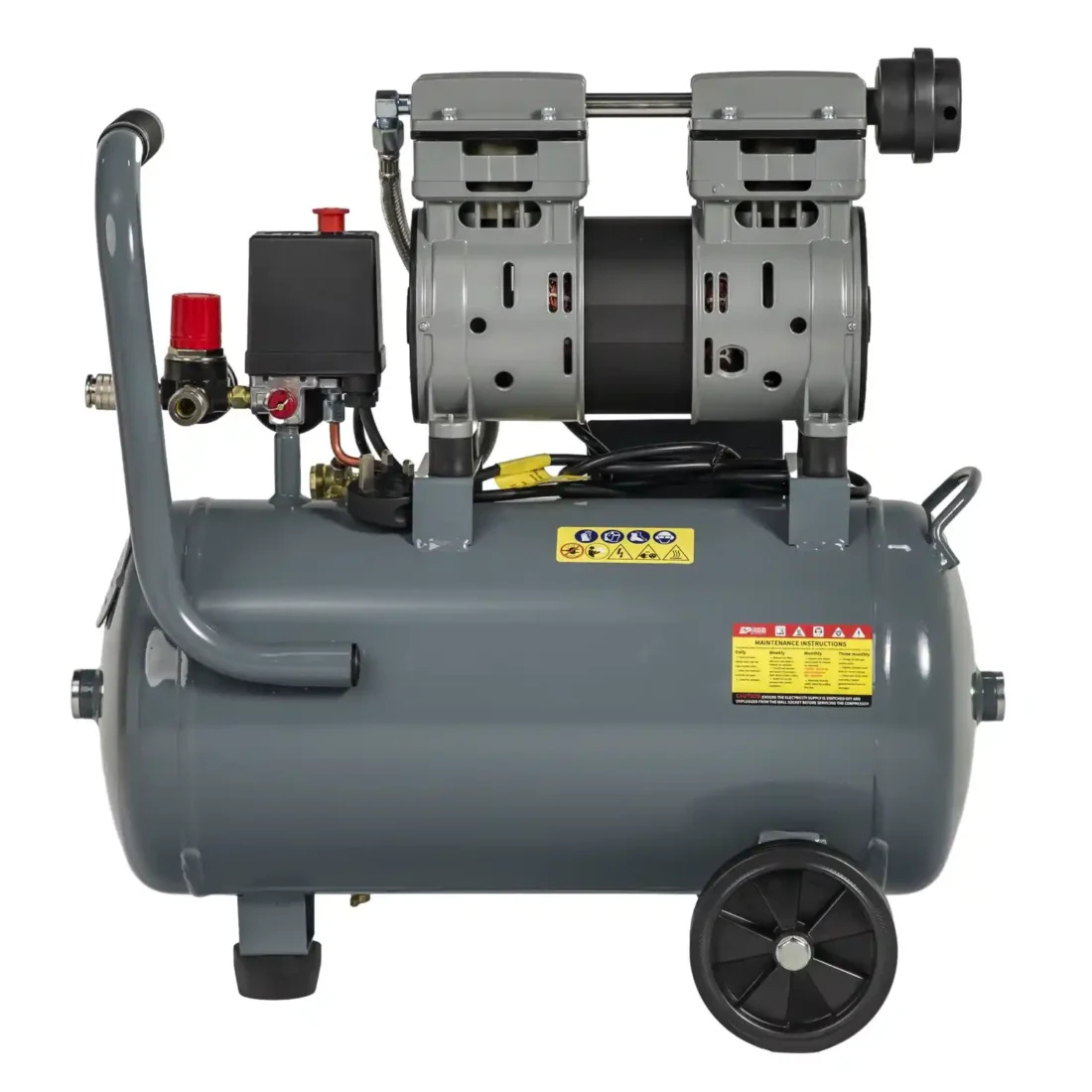

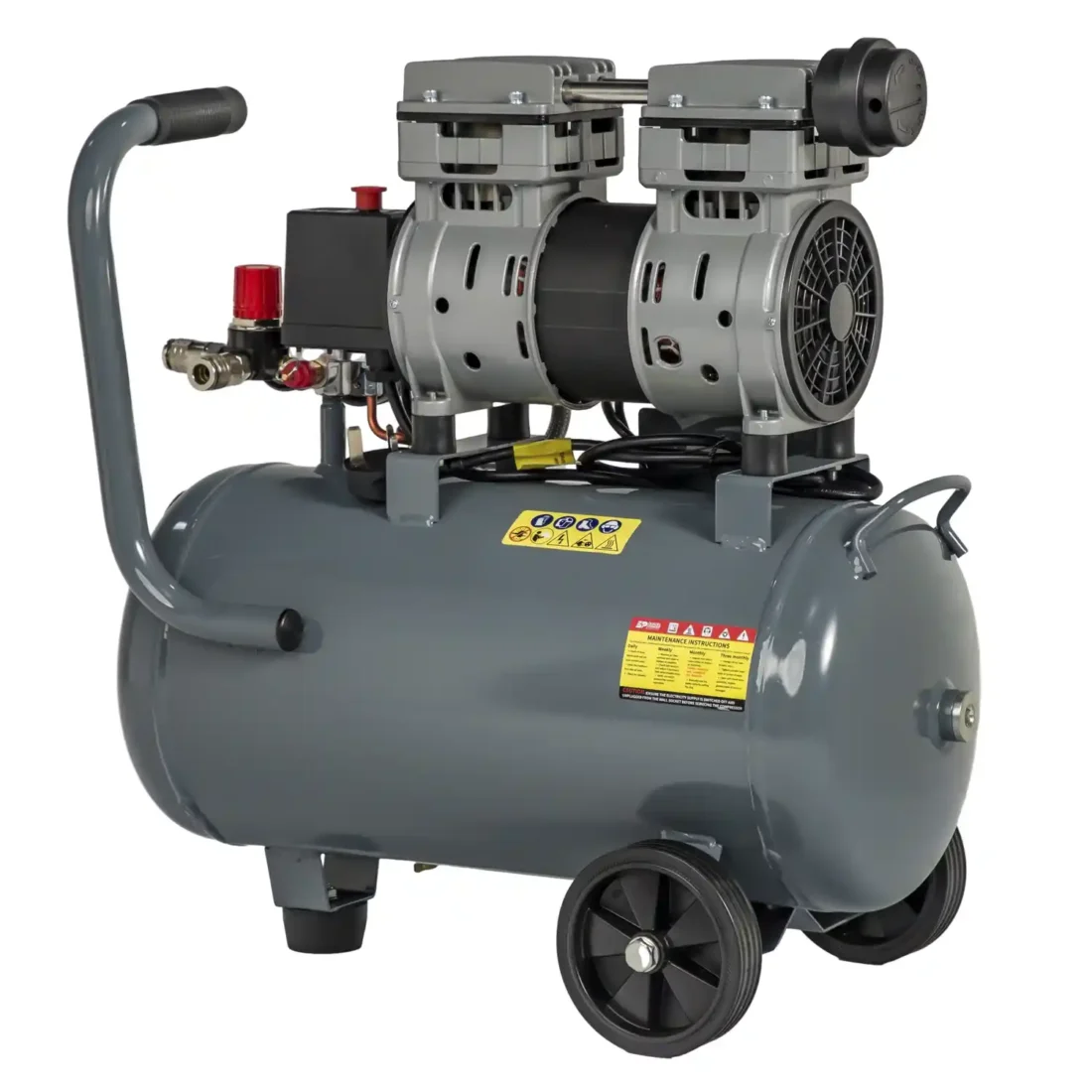

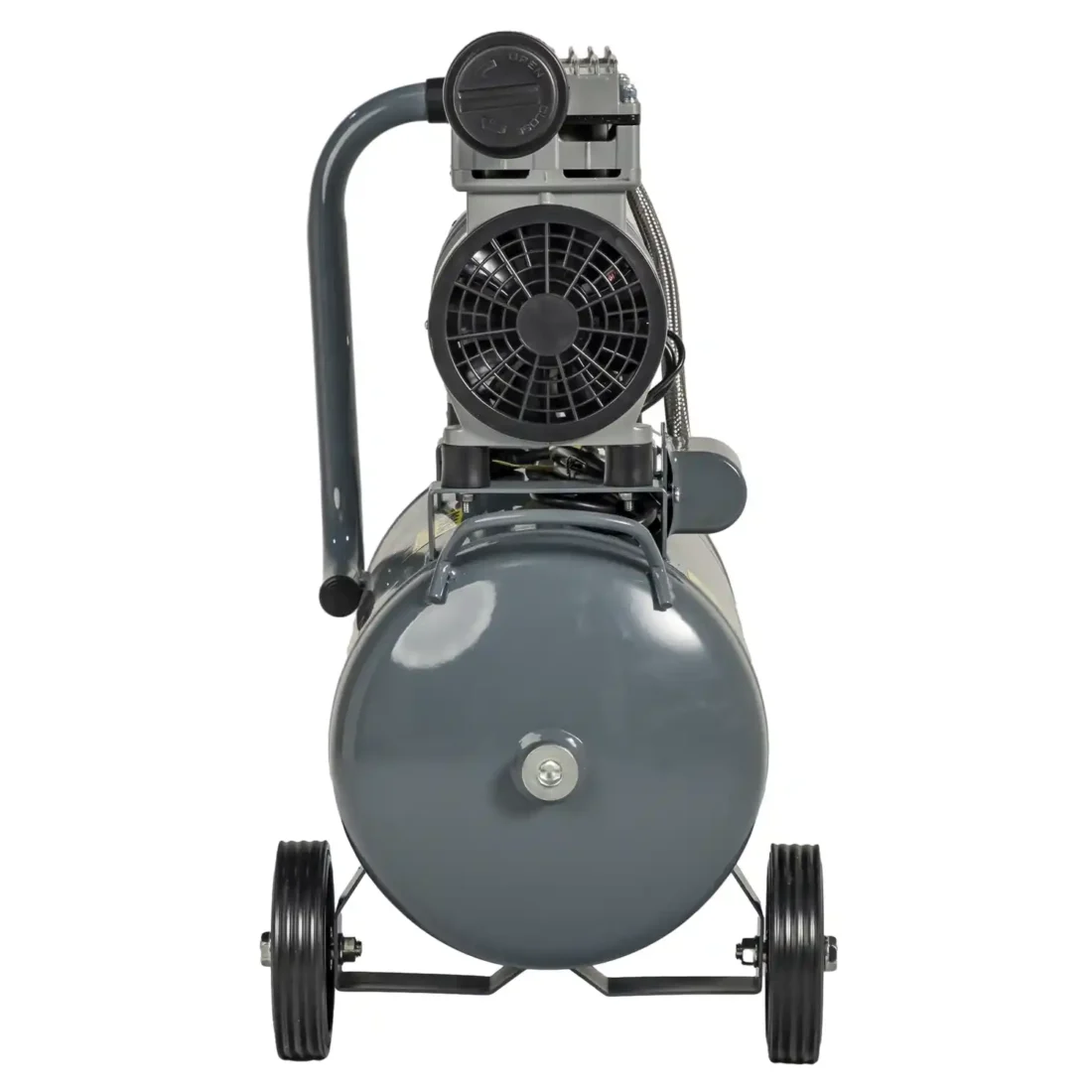

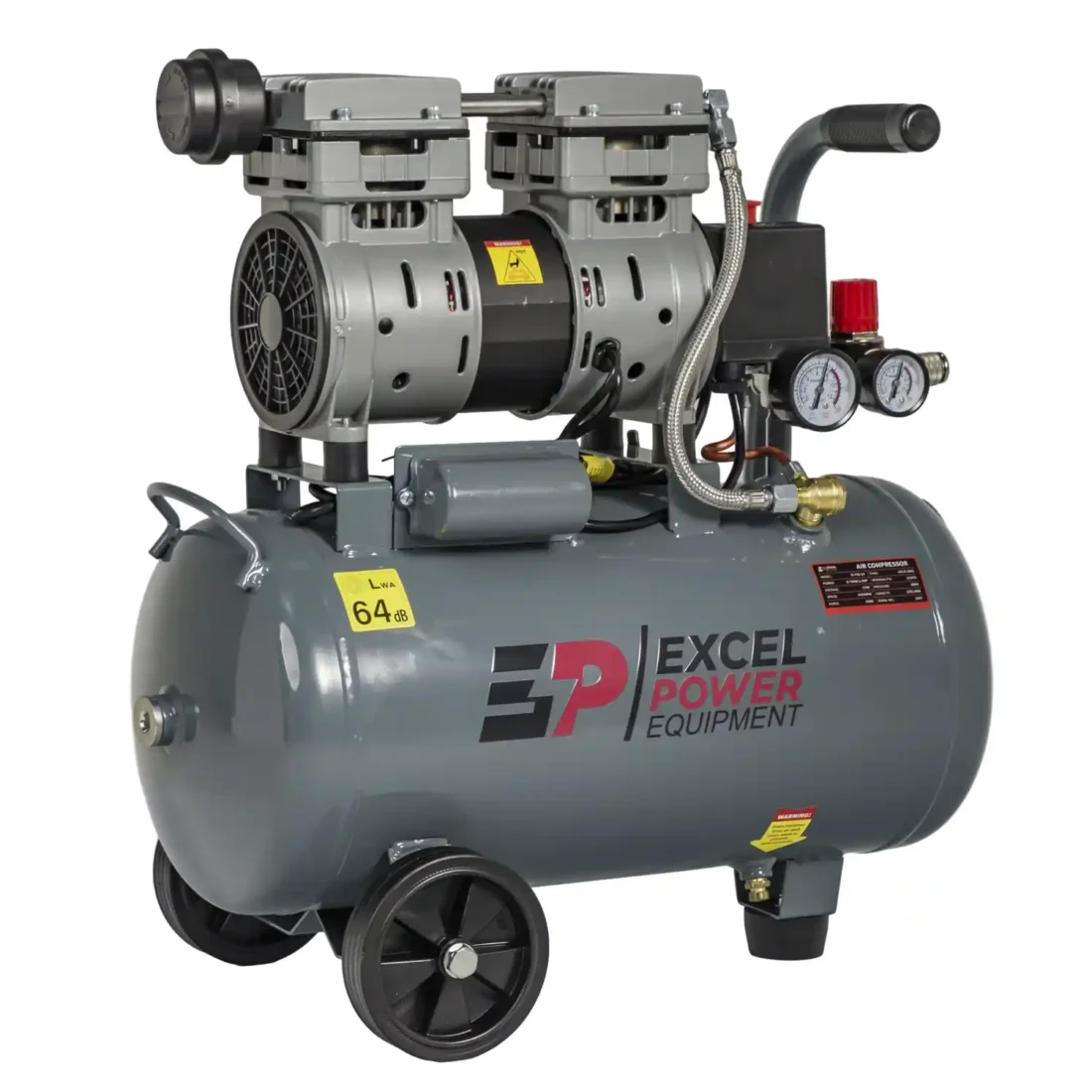

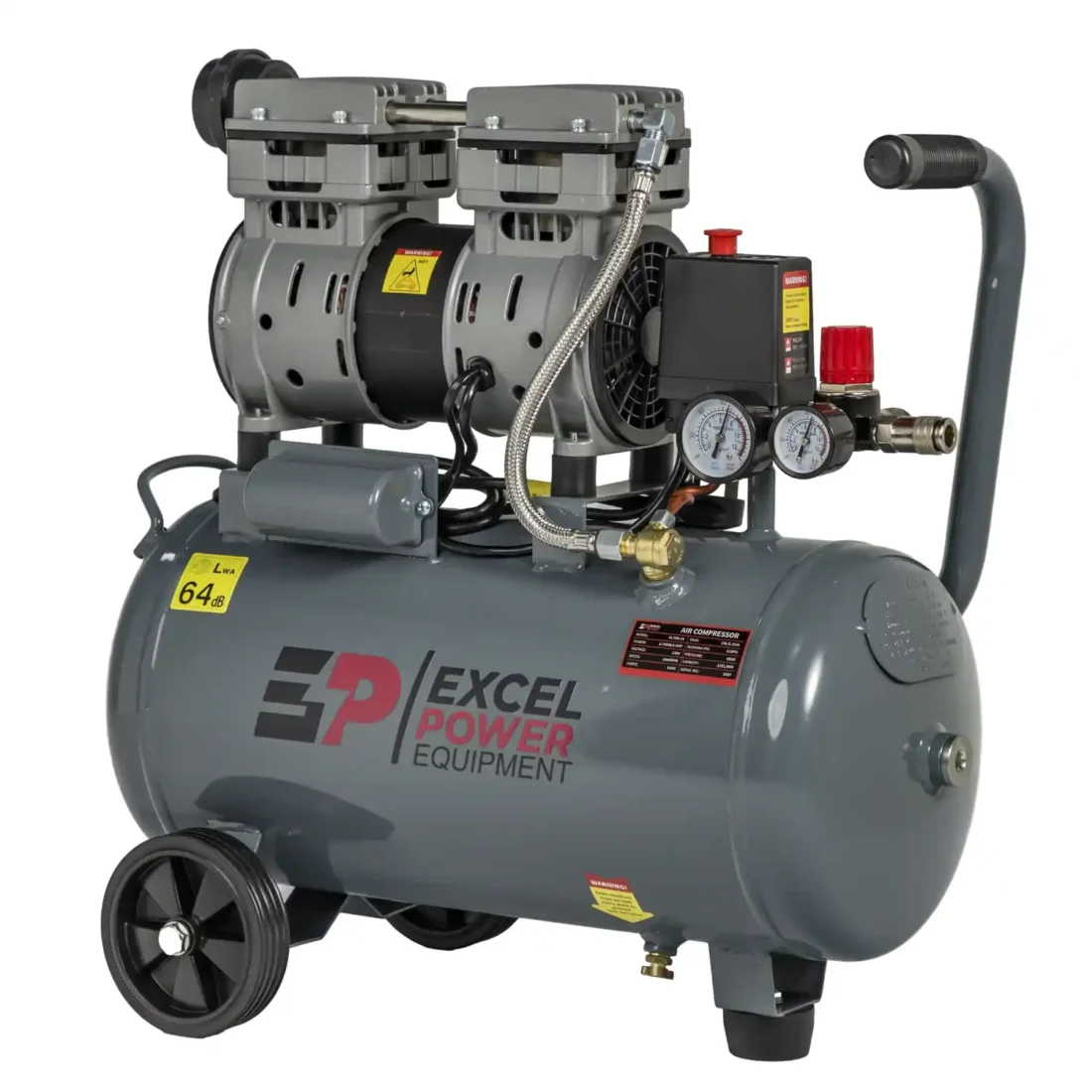

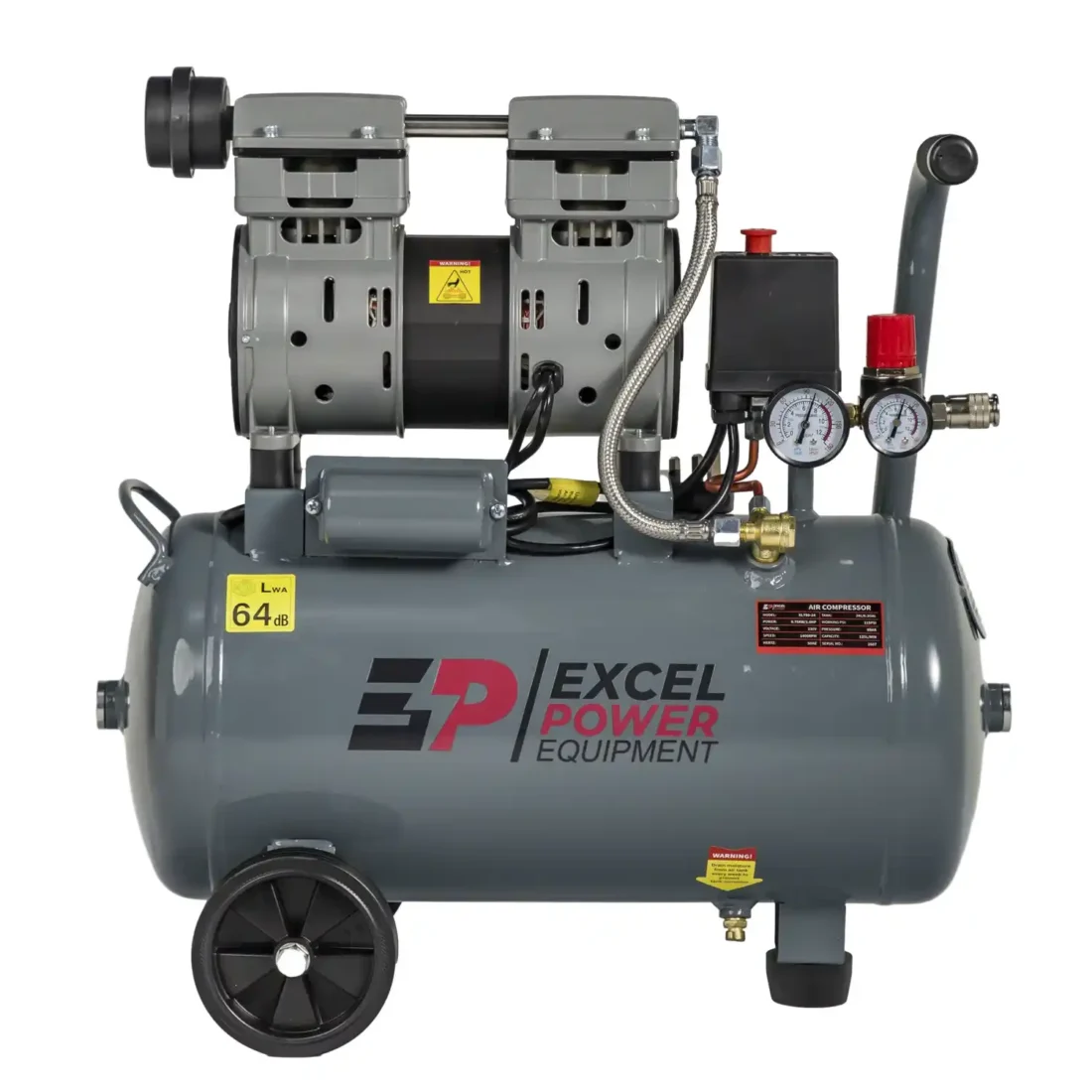

Excel Power XL750-24 Oil Free Air Compressor

Conventional workshop pneumatic systems present persistent trade-offs in residential workshops, home garages, and light trade environments. Standard oil-lubricated direct-drive units frequently produce noise levels exceeding 90dB, creating severe acoustic disruption while risking oil vapor contamination across sensitive pneumatic lines. Conversely, smaller diaphragm pumps lack the pressure threshold required for consistent tool actuation and rapid inflation tasks. The Excel Power XL750-24 solves this operational gap by integrating a dual-piston oil free air compressor pump with a 24L pressure vessel. Designed specifically for low-maintenance, intermittent pneumatic requirements, this electric air compressor delivers clean, regulated air for tyre inflation, fine airbrush spraying, stapling, and general workshop clearing without requiring oil changes or hearing protection.

Dual-Piston Oil-Free Pump Mechanics and Mechanical Durability

At the mechanical core of the XL750-24 lies a dual-piston oil free air compressor pump engineered with low-friction synthetic cylinder linings. Traditional piston compressors rely on oil baths to lubricate crankcases, requiring frequent fluid checks, filter changes, and regular replacement of oil-fouled gaskets. By eliminating oil lubrication from the crankcase entirely, this portable air compressor prevents oil aerosol mist from entering the downstream air supply. This characteristic makes it exceptionally suited for delicate finishing tasks such as fine-line airbrushing, decorative spray painting, and inflating sports equipment or vehicle tyres where fluid contamination damages the material surface.

The internal pump assembly utilises high-durability PTFE piston rings and precision-machined aluminium cylinders designed to minimise mechanical friction. Driven by a 750W (1.0HP) induction motor running at an optimized 1400 RPM, the unit reduces rotational wear compared to high-speed 2800 RPM alternatives. Lower rotational speed directly reduces internal heat accumulation, extending mechanical seal life and stabilising internal clearances during repeated operational duty cycles.

Pneumatic Air Delivery, Tank Volume, and Electrical Requirements

The operational specs of the XL750-24 centre around a steel 24L air compressor tank rated for a maximum working pressure of 8 Bar (115 PSI). The 24L receiver vessel acts as an energy buffer, storing compressed air to maintain stable downstream pressure while preventing continuous motor power cycling. Delivering a displacement flow rate of 125 L/min, this 24l compressor provides steady air delivery for small pneumatic tools including brad nailers, narrow-crown staplers, and pneumatic blow guns.

Operating on a standard single-phase 230V / 50Hz electrical utility supply, this electric air compressor draws minimal starting current. The 750W power draw allows safe operation off standard domestic mains outlets and extension leads without tripping circuit breakers or overwhelming domestic ring mains. Integrated pressure switches automatically manage motor engagement, cutting in when receiver pressure drops and shutting off once the maximum 8 Bar threshold is restored. An adjustable pressure regulator with dual pressure gauges allows precise monitoring and adjustment of output line pressure independently of internal tank pressure.

Acoustic Engineering, Portability, and Chassis Architecture

Acoustic management is a defining feature of the XL750-24 air compressor. Operating at a sound pressure level of just 64dB measured at standard operating distances, this unit operates at conversational volume. Strategic noise reduction is achieved through dual intake air silencer filters, heavy-duty rubber vibration-dampening feet, and a balanced motor counterweight assembly. The resulting low acoustic footprint allows home DIYers, hobbyists, and mobile handypersons to work inside residential garages, sheds, or indoor spaces without generating disruptive noise.

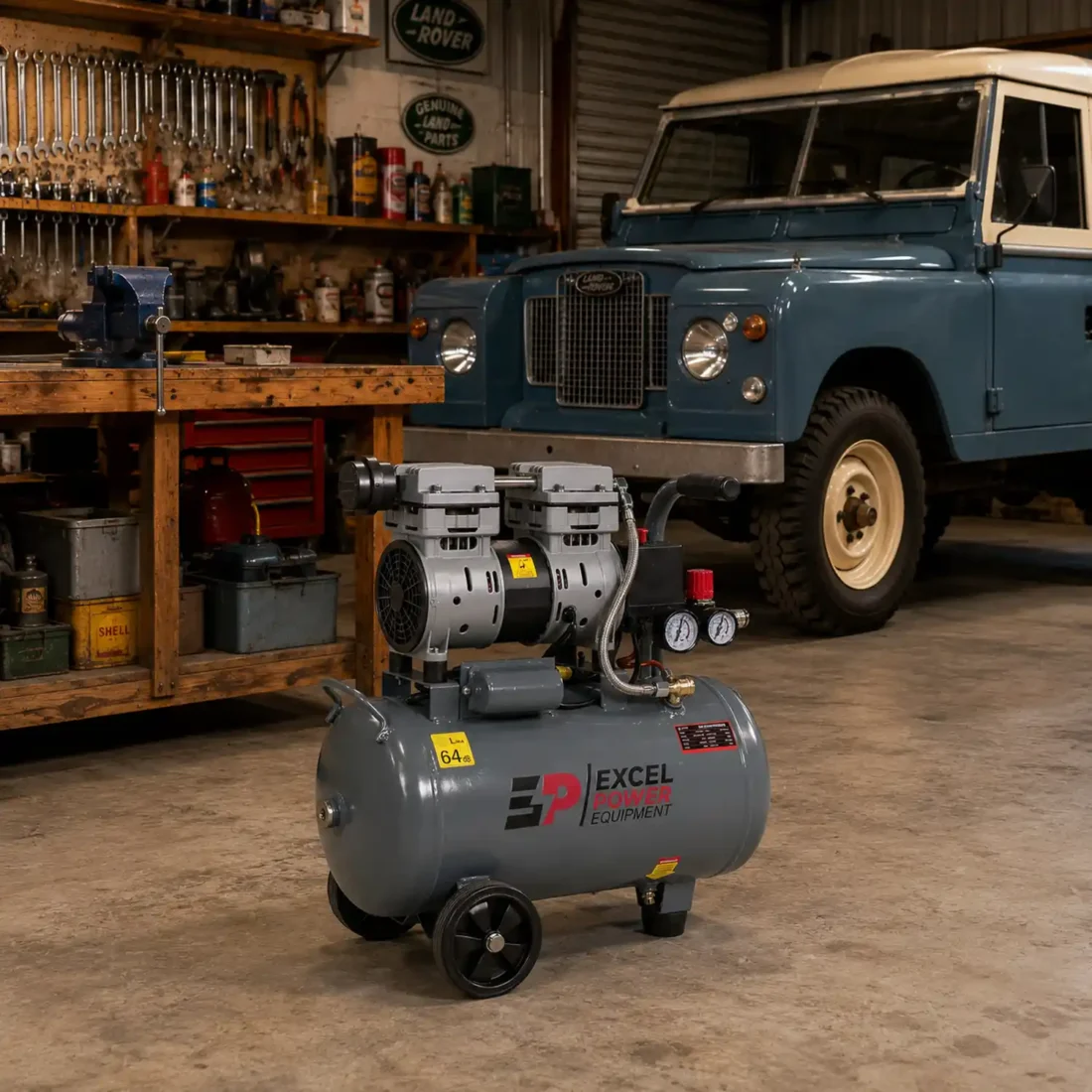

Weighing 19kg net (20.5kg gross), the unit is optimised for easy transport and storage. The integrated tubular steel protective frame shields the motor housing and control block from physical impacts during transit. Measuring 590 × 285 × 550 mm, the compact footprint allows this 24l air compressor to fit under workshop benches or inside vehicle boots. A dedicated condensation drain valve located at the base of the vessel facilitates quick moisture removal after operation, preserving internal vessel integrity over an extended service life.

Key Feature Specifications

• Oil-Free Dual-Piston Pump: Delivers 100% clean compressed air without line contamination or pump oil maintenance requirements for the XL750-24 oil free air compressor.
• Ultra-Quiet 64dB Acoustic Output: Operates at conversational sound levels, enabling comfortable garage and indoor work with this quiet electric air compressor.
• 24L Pressure Receiver: Heavy-duty steel 24l compressor tank holds steady pressure reserves at up to 8 Bar (115 PSI) to minimize motor start cycles.
• 750W / 1.0HP Electric Motor: Runs efficiently on standard 230V/50Hz domestic power supplies with minimal starting current draw.
• 125 L/min Air Flow Rate: Provides reliable continuous volume for running brad nailers, airbrush tools, blow guns, and serving as a tyre compressor.
• Compact Portable Frame: Net weight of 19kg paired with a 590 × 285 × 550 mm steel frame makes this portable air compressor simple to transport and store.

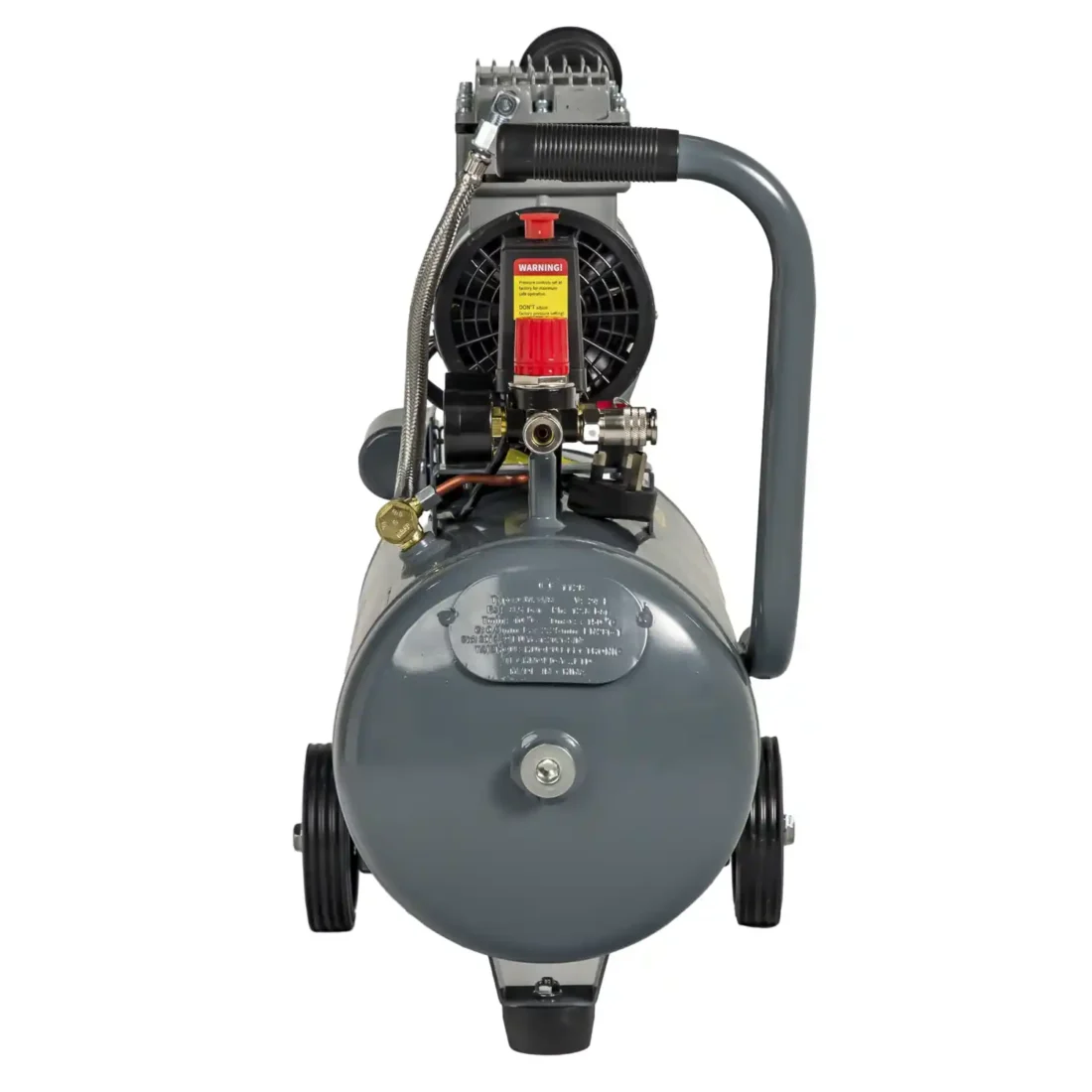

• Integrated Tank Moisture Drain: Base-mounted manual drain cock allows fast purging of accumulated condensation to protect the internal tank wall.

What’s in the Box?

Excel Power XL750-24 Oil Free Air Compressor, Wheels & rubber vibration-dampening foot plus fixing nuts and bolts, User manual.
