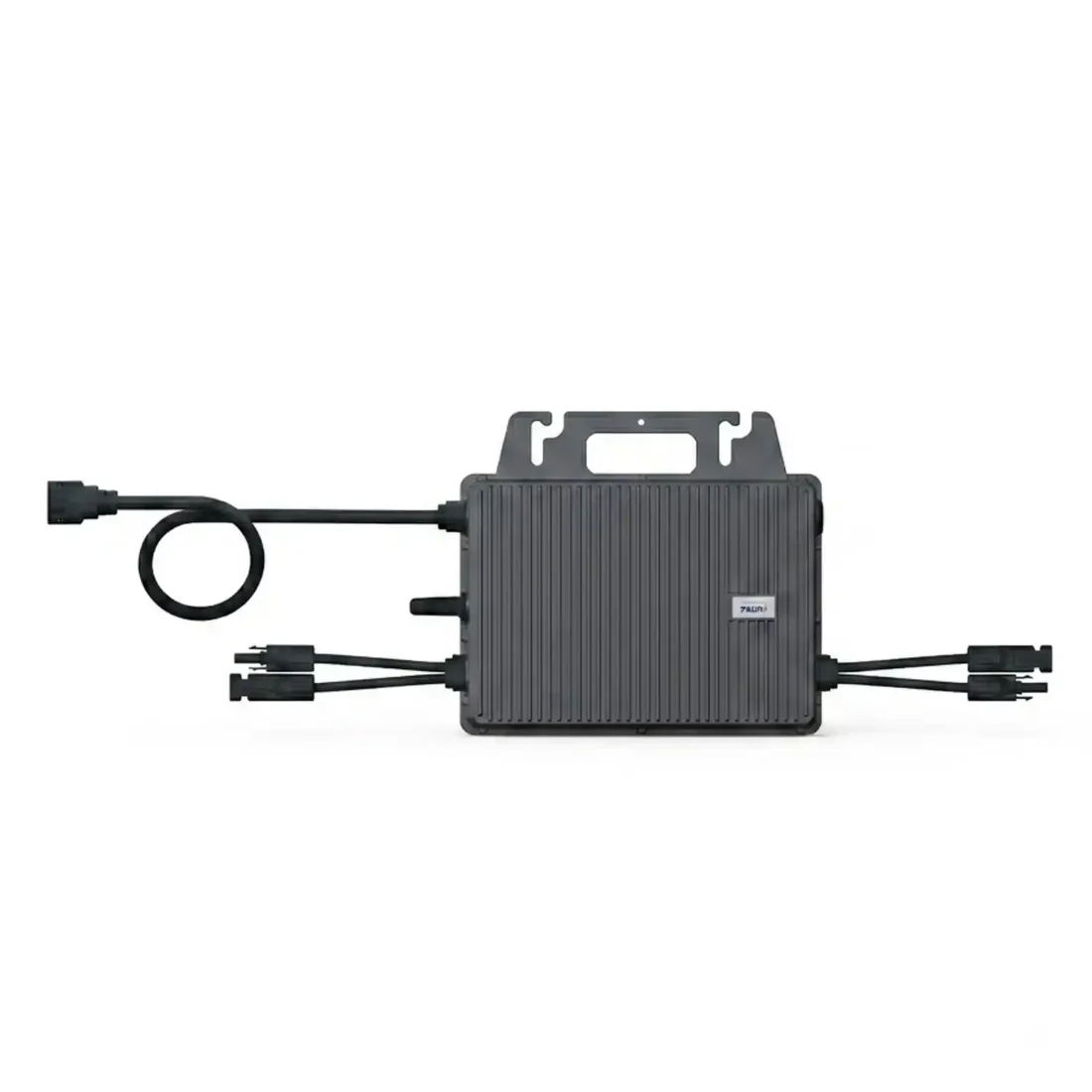

TSUN 800W Plug-In Balcony Microinverter

Take full control of your household energy consumption and dramatically shave electric bills with the TSUN 800W Plug-in Balcony Microinverter. Engineered specifically for small-scale decentralised photovoltaic (PV) generation, this high-performance microinverter is the ideal engine for a premium, dual-panel Solar Balcony System.

Designed for standard plug-and-play installation, the TSUN MS800 connects directly into your existing home grid via a conventional domestic socket. It allows urban dwellers, tenants, and homeowners alike to transform balconies, terrace railings, or small garden structures into high-yield clean energy micro-powerplants.

Dual-MPPT Independent Panel Optimisation

Traditional series-connected solar setups suffer major system-wide losses if a single panel encounters real-world interference. The TSUN 800W Microinverter overcomes this issue entirely by featuring two completely independent Maximum Power Point Tracking (MPPT) networks.

Because each solar panel communicates with its own dedicated tracker, the panels work independently. If one panel is affected by passing clouds, balcony railings, or leaf debris, its efficiency drop is completely isolated. The adjacent panel continues to harvest sunlight at maximum capacity, ensuring your balcony power plant consistently yields the highest aggregate energy output possible.

• High-Output Panel Matching: Supports two individual ultra-high-power PV modules ranging from 300W to 550W+ (up to a combined 1100W peak input).
• Exceptional Conversion Rates: Features a static MPPT efficiency rating of 99.9% and a peak inverter conversion efficiency of 96.7%.
• Early-Start low voltage performance: An ultra-low startup threshold of 22V ensures the system triggers early in the morning and stays online through late afternoon low-light conditions.

Technical Specifications & Engineering

Built with premium die-cast aluminium casing and structural glue-filling technology, this unit relies entirely on natural convection cooling to maintain optimal thermal management. This fanless architecture ensures silent operation directly outside your living area while maximising internal component lifespans.

Plug & Play Integration with Advanced Grid Safety

The TSUN TSOL-MS800 is engineered with safety as its highest priority. By keeping the maximum DC input voltage strictly under 60V, the microinverter completely mitigates the hazard of high-voltage DC arcing, making it entirely safe for domestic DIY setup and maintenance.

Installation is streamlined: connect your two solar panels directly into the dual MC4 inputs, and connect the integrated AC bus cable directly into your home’s electrical socket. The system features built-in Loss of Mains (LoM) protection and is fully certified to rigid grid-safety standards (including VDE-AR-N 4105 and EN 50549-1), meaning it immediately disconnects if utility grid power drops out, protecting maintenance workers on the local network.

Full UK Grid Compliance: G98 Certified

The TSUN 800W Plug-in Balcony Microinverter is fully G98 Compliant, making it legally recognised and certified for safe connection to the UK electrical grid. In simple terms, G98 is a standard technical regulation set by the UK Energy Networks Association for small-scale, domestic renewable energy systems that output under 3.68kW. Being G98 compliant means the microinverter has undergone strict type-testing to guarantee it won’t disrupt your local power network. Most importantly, it features an integrated automatic safety switch off. If there is ever a power cut in your neighbourhood, the inverter instantly disconnects within milliseconds to prevent sending live electricity back into the external wires, keeping utility engineers entirely safe while they work on the lines. With this certification, you can plug in your balcony system with complete peace of mind, knowing it meets all UK safety and legal infrastructure requirements.

Smart Integrated WiFi Monitoring

Tracking your return on investment is simple. The TSUN 800W Microinverter features an integrated WiFi and Bluetooth Low Energy (BLE) communication module, bypassing the need for expensive, complicated external data gateways.

By linking the inverter directly to your home router, you can utilise the free Talent Home App or TSUN web platform to view module-level performance data, real-time generation metrics, and cumulative electricity savings from anywhere.

What’s In The Box?

TSUN 800W Plug-in Balcony Microinverter, (Does not include AC cable).
